tRPC-Agent-Go: Building a Secure, Controllable, Enterprise-Grade OpenClaw Runtime
Introduction
When an Agent moves from one-shot Q&A into long-running scenarios,
the real question is no longer whether a single reply is clever.
What matters is whether it can reliably accept messages, manage
sessions and memory, process images and files, execute tools, keep
running over time, and remain operable. This article focuses on the
openclaw implementation in the GitHub open-source repository and
uses the default message-entry example from the repository as a guide
to explain how message intake, session state, tool execution, file
handling, scheduling, and management capabilities are assembled into
one complete runtime.
Preface
tRPC-Agent-Go is a self-directed multi-Agent framework for Go, developed by the tRPC-Go team. It includes tool calling, session and memory management, artifact management, multi-Agent collaboration, graph orchestration, knowledge bases, and observability.
GitHub repository:
github.com/trpc-group/trpc-agent-go
openclawdirectory:
github.com/trpc-group/trpc-agent-go/tree/main/openclaw
In tRPC-Agent-Go, openclaw is not a one-to-one clone of the official
OpenClaw project in terms of project structure, protocol details, or
runtime internals. Instead, it is a Go-native implementation of the
OpenClaw shape built on top of existing tRPC-Agent-Go abstractions:
long-running execution, multi-entry message intake, continuous
scheduling, and extensible tools and skills. Its goal is not to define
yet another Agent framework, but to assemble existing capabilities into
a runtime shell that is closer to a real assistant product.
If this is your first time opening the repository, these entry points are the best place to start:
- Repository root: github.com/trpc-group/trpc-agent-go
openclawdirectory: github.com/trpc-group/trpc-agent-go/tree/main/openclaw- Reference configuration: github.com/trpc-group/trpc-agent-go/blob/main/openclaw/openclaw.yaml
- Extension guide: github.com/trpc-group/trpc-agent-go/blob/main/openclaw/EXTENDING.md
- Integration guide: github.com/trpc-group/trpc-agent-go/blob/main/openclaw/INTEGRATIONS.md
Together, these materials answer three practical questions:
- What exactly is
openclaw? - How does the default repository configuration become a real runtime?
- Where should you extend it when the default capabilities are not enough?
Background
Once an Agent enters a long-running setting, the question shifts from single-turn output quality to runtime completeness. A runtime that can work reliably over time must solve at least five classes of problems:
- How to receive messages, meaning how to bring external requests into the system.
- How to maintain context, meaning how to merge related messages into stable sessions and decide what belongs in long-term memory.
- How to execute actions, meaning how to let the Agent call tools, skills, and code executors while handling files and multimodal input.
- How to keep running, meaning how to support scheduled jobs, cross-session delivery, file uploads, and a management surface.
- How to extend capabilities, meaning how to add new Channels, Models, ToolSets, and storage backends without rewriting the core path.
OpenClaw is representative because it treats all five problems inside one unified runtime boundary. In the Go ecosystem, this is especially meaningful from an engineering perspective. The hard part is usually not building a bot that can reply. The hard part is organizing Gateway, Session, Memory, Tools, file handling, scheduling, and management into a system that can run continuously while reusing as much of the existing framework as possible.
That is exactly the role of openclaw in tRPC-Agent-Go. It uses
Runner as the execution center, Session and Memory as the state
foundation, Tool, Skill, ToolSet, and executors as extension points,
and then adds Gateway, Channel, Cron, upload storage, and Admin UI
around them. In that way, it turns single-turn reasoning into a
long-running system.
Quick Start
The goal of this section is simple: start from the repository's existing configuration, run a real message entry point, and build an intuitive understanding of the end-to-end runtime path.
Environment Preparation
If you want to run openclaw from source, prepare the following:
- A Go development environment
- The tRPC-Agent-Go repository
- A message-entry credential; this article uses a Telegram Bot Token
- An accessible model service, or
mockmode for initial testing
There are two basic ideas to keep in mind:
- The message-entry credential determines whether
openclawcan actually receive and send messages. - The model service address and key determine whether the Agent can continue with reasoning, multimodal understanding, and tool invocation after a message arrives.
Step 1: Prepare Environment Variables
The repository's openclaw/openclaw.yaml reads its message-entry
configuration from environment variables. The current default example
uses a Telegram token. A minimal setup looks like this:
These variables mean:
TELEGRAM_BOT_TOKEN: the access token for the Telegram botOPENAI_API_KEY: the model service keyOPENAI_BASE_URL: the base URL of the model service
If you only want to validate message intake and message delivery
without connecting a real model yet, change model.mode in the config
to mock. That narrows the problem down to "did the message come in"
and "did the result go out." Once that path is stable, you can switch
back to a real model.
Step 2: Understand the Default GitHub Configuration
The GitHub repository provides this reference configuration in
openclaw/openclaw.yaml:
On a first read, you can interpret this YAML as follows:
app_nameidentifies this runtime instance.http.addris the HTTP address exposed by the runtime; health checks and the Gateway live here.adminenables the local management surface for debugging jobs, routes, uploads, and traces.agent.instructionis the system-level behavioral instruction.modeldefines how the underlying model is connected.channelsdeclares atelegramentry, meaning external messages come from Telegram in this example.sessionandmemoryboth start withinmemoryso the first startup stays simple.
Step 3: Confirm the Binary Includes the Default Entry Plugin
Run this inside the openclaw directory:
This command prints the capabilities registered in the current binary.
On the first pass, the main thing to check is whether telegram
appears in the output. If it is missing, then a YAML entry such as
type: "telegram" cannot actually create that Channel at runtime.
Step 4: Start the Runtime
Once the plugin is present, start the runtime directly with the default GitHub configuration:
Then check the health endpoint first:
If that returns normally, the HTTP layer is up. Then go back to the chat entry point and do the first end-to-end verification:
- Send a very simple command such as
/help. - Then send a plain text message.
- After text is stable, test images, PDFs, and Excel files.
- Finally, verify more complex tool calls, scheduled tasks, and outbound actions.
This order matters because it isolates problems layer by layer:
/helpis best for checking whether entry and exit work.- Plain text is best for checking whether model invocation works.
- Images and files are best for checking multimodal normalization and upload or download paths.
Typical Scenarios
The screenshots below come from the current default example entry. The
underlying screenshots are preserved in their original UI language, and
each figure now includes an English annotation panel so the flow is
readable without translating every chat bubble in place. What matters
is not whether the model replies in some abstract sense, but how an
external message enters openclaw, passes through Gateway, Runner,
Agent, Tool, file handling, and outbound delivery, and becomes a
complete result.
Document Processing
Document processing is one of the clearest ways to show the value of a runtime. The hard part here is not whether the model can "say something." The hard part is whether the system can connect all the steps: receive the file, understand the instruction, call tools, produce the output, and send the result back as a file.

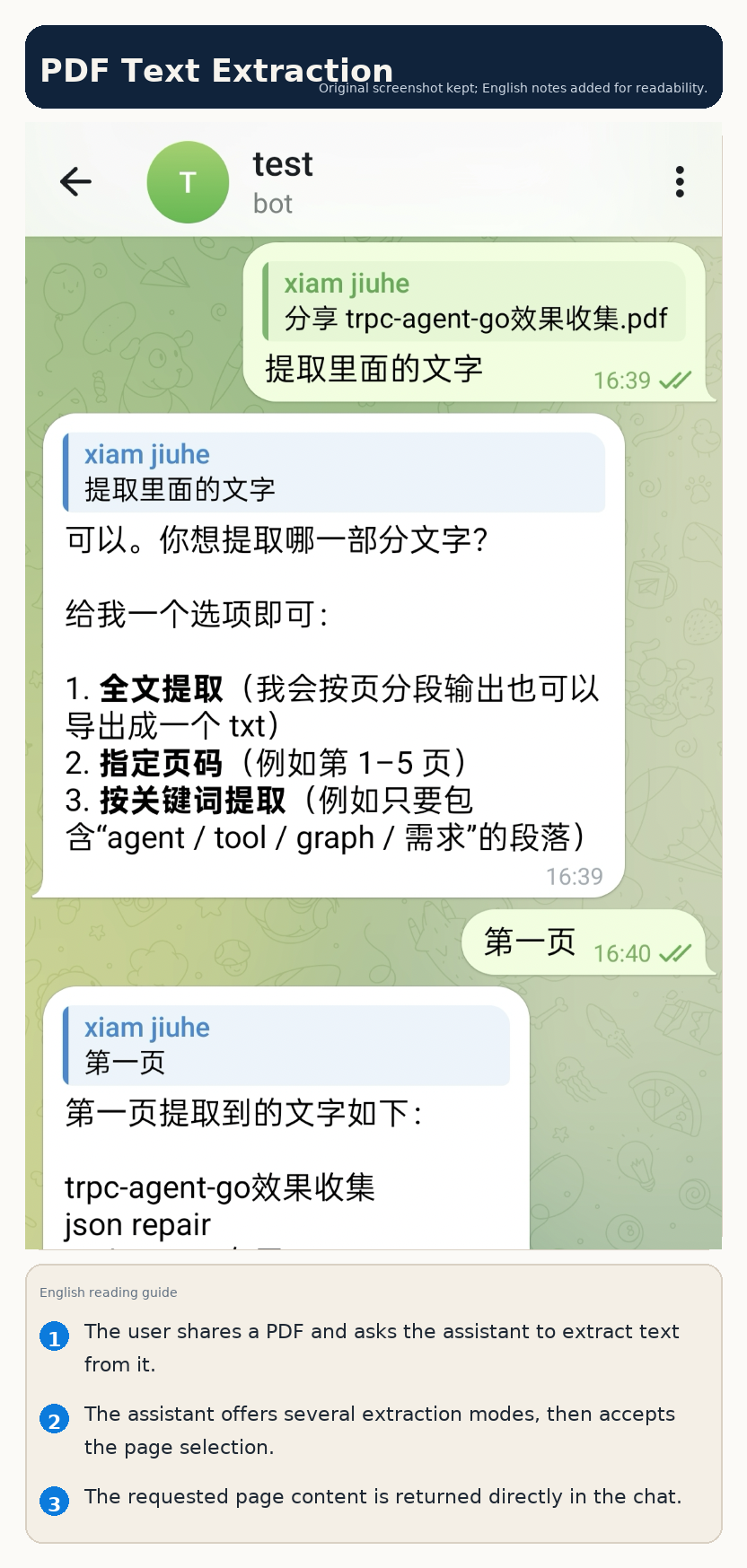

For example, after a PDF is uploaded, the system can extract requested content directly:

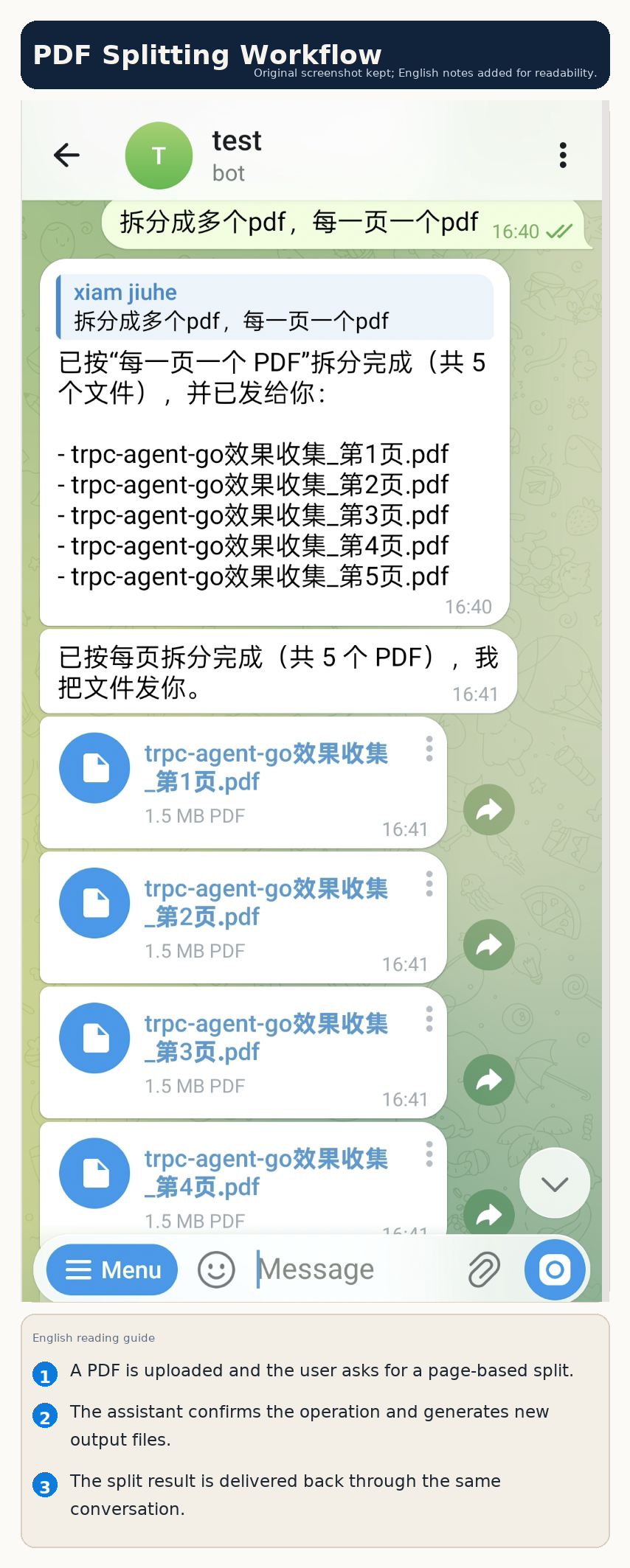

It can also split a PDF into multiple pages and send a new file back:

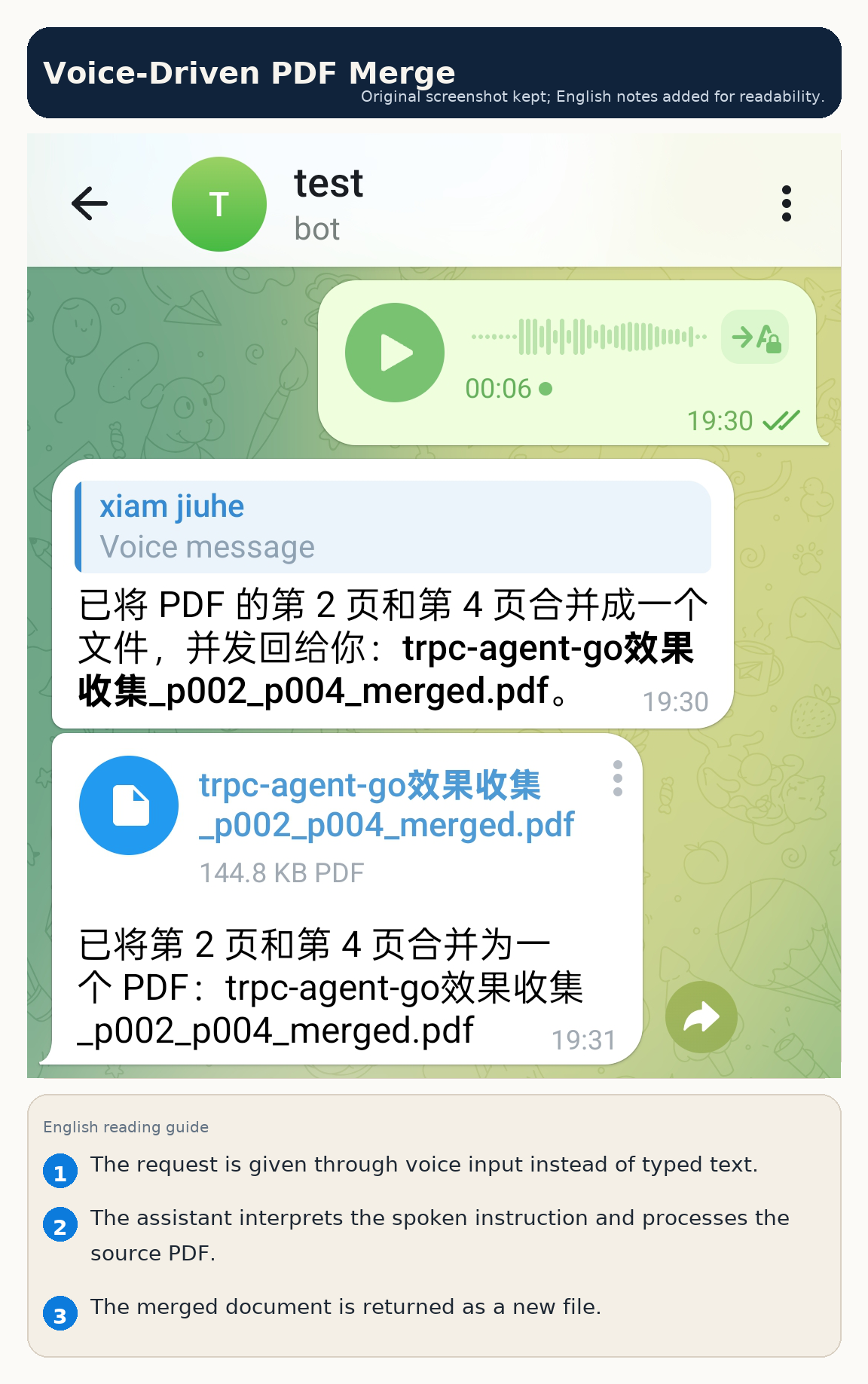

Voice input can drive document processing as well. In the next example, the user asks by voice to merge selected pages into a single PDF:

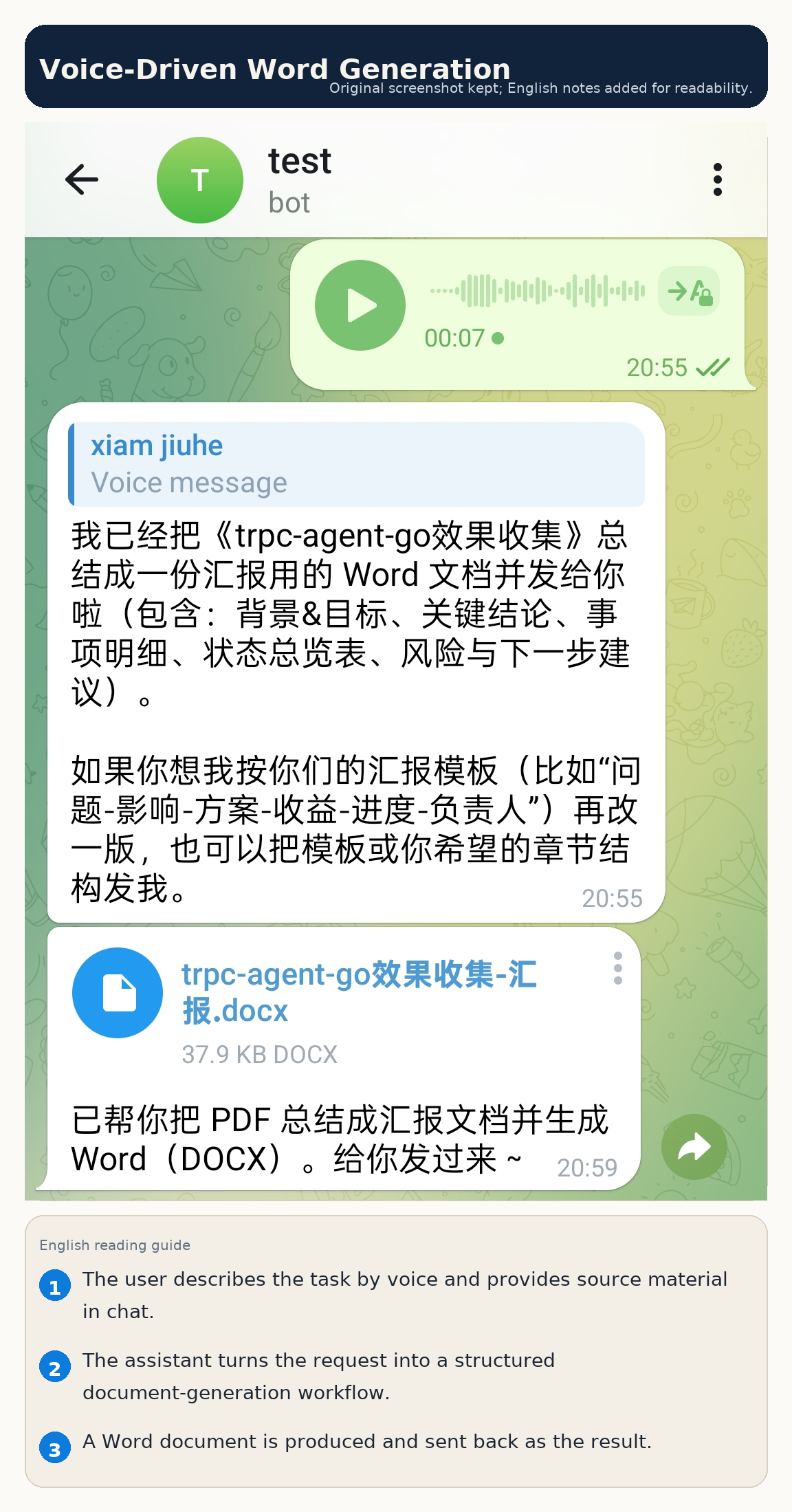

The system can also generate a Word document for reporting directly from the input materials:

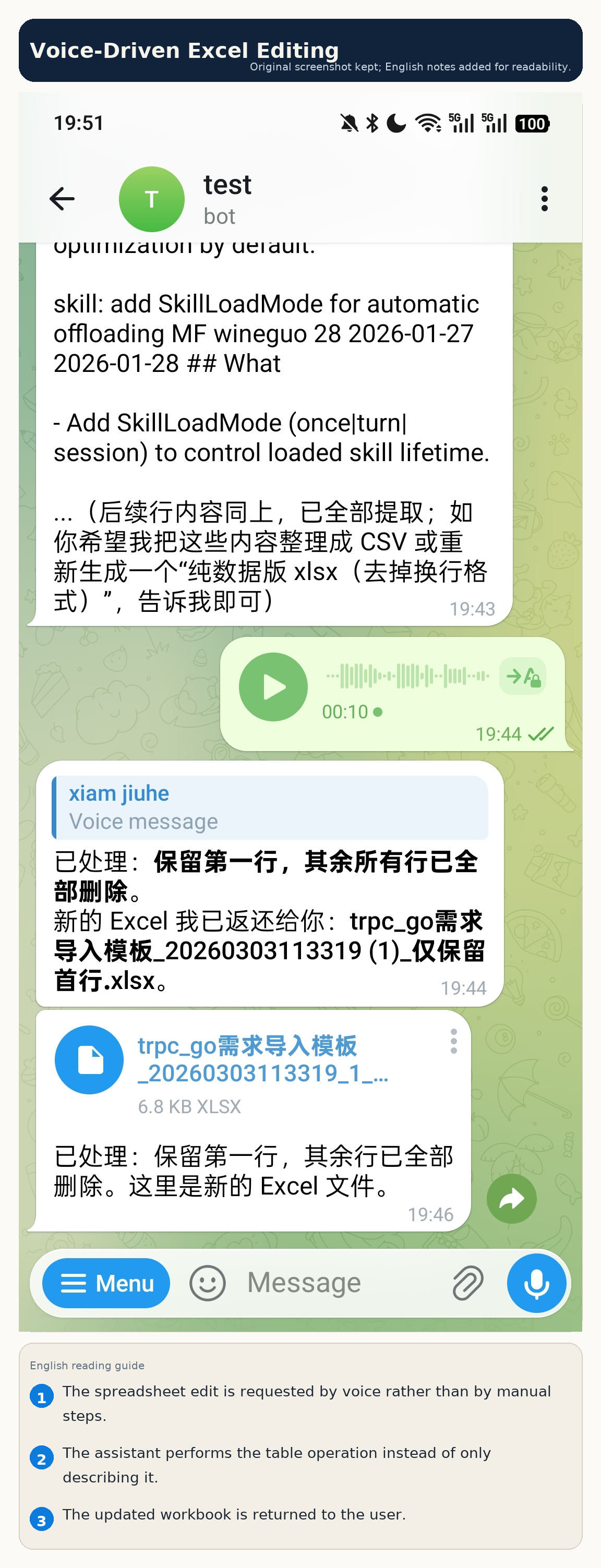

Excel processing follows the same end-to-end path. In the example below, the user asks by voice to keep the first row and delete the rest, and the processed spreadsheet is returned directly:

What these examples show is that one runtime can accept files, process multimodal input, execute tools, and return files without requiring a separate workflow for each file type.
Images and Video

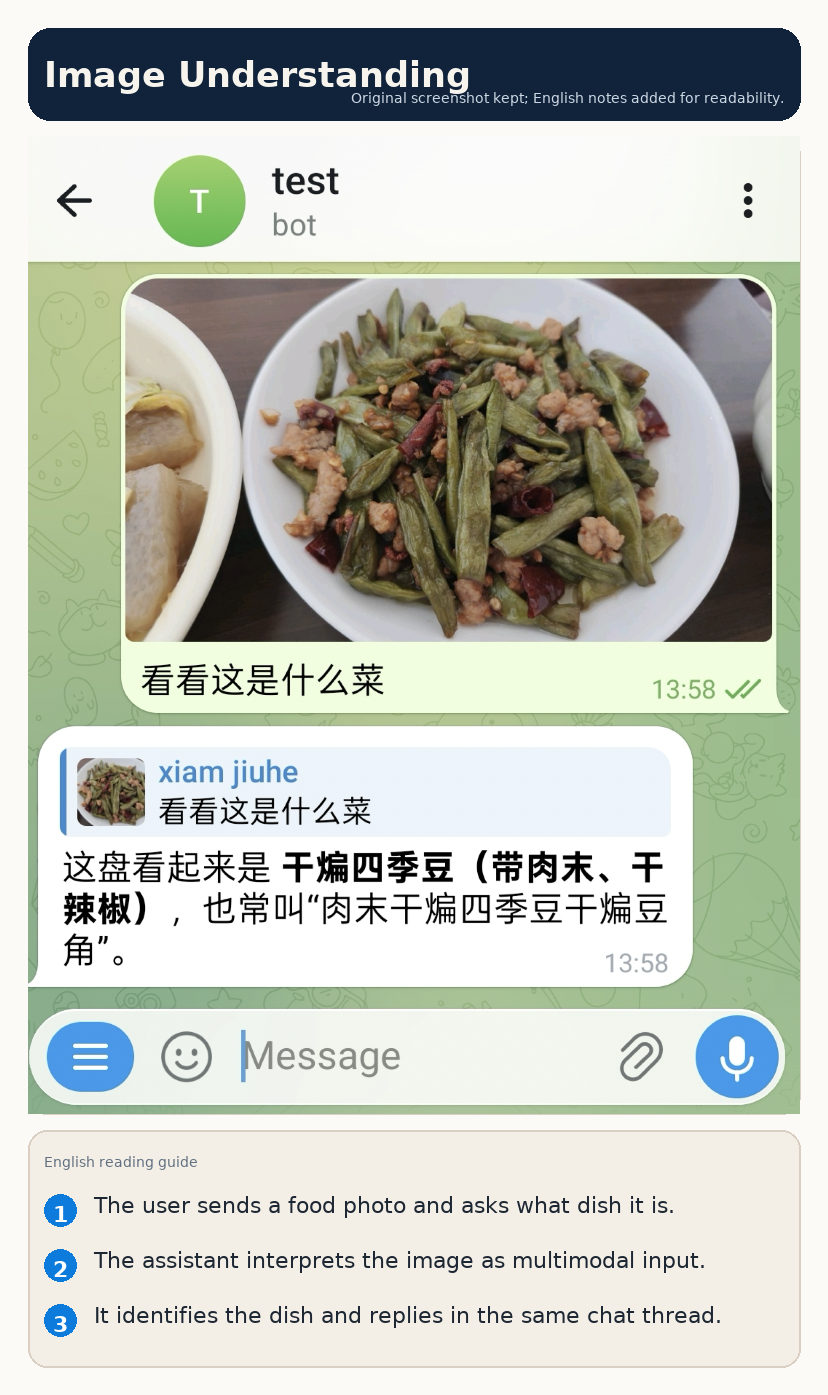

In image-understanding scenarios, a picture can go directly into the model as multimodal input:

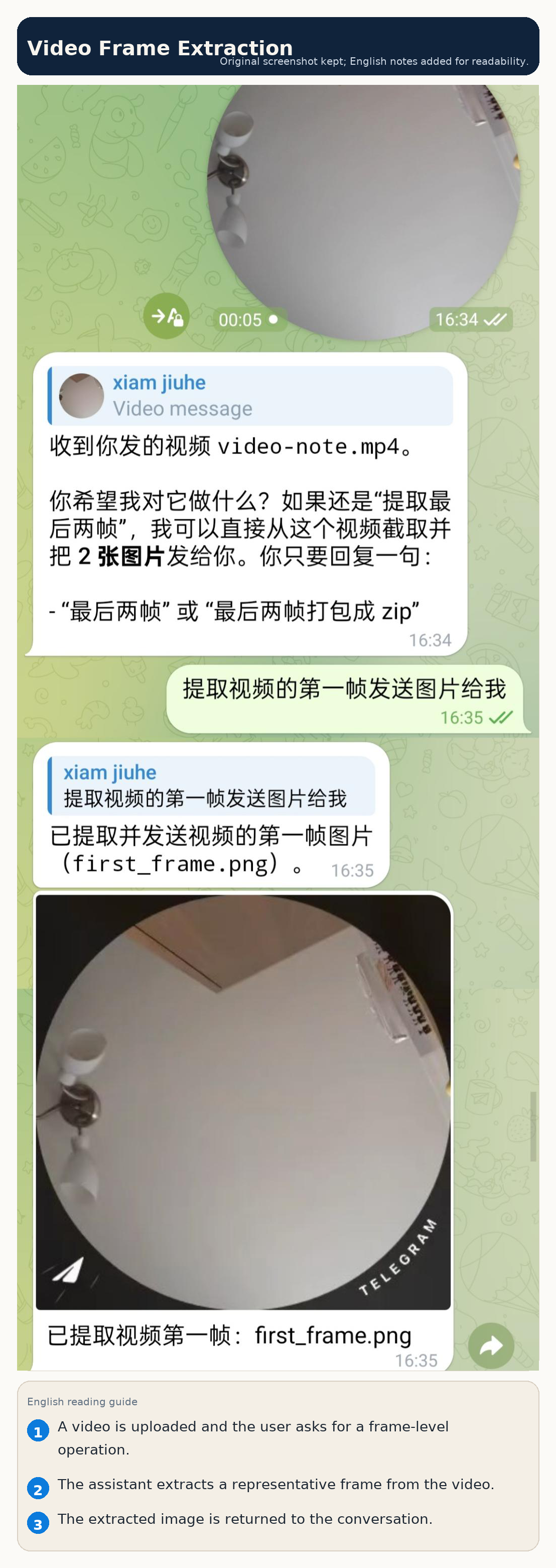

Video scenarios usually go through a "process the media first, then hand it to the model" path. In the example below, the user asks for the first frame of a video to be extracted and sent back as an image:

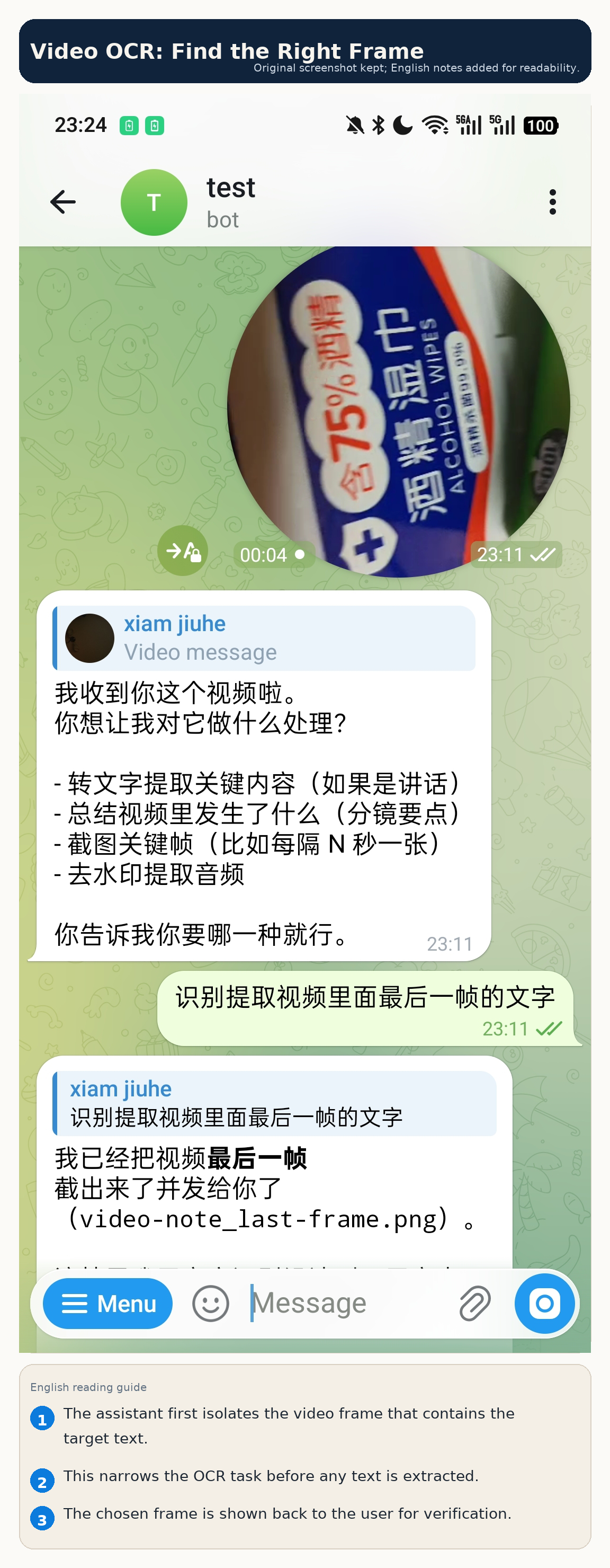

In video OCR scenarios, the system can first identify the target frame and then continue with text extraction. This example first extracts the last frame:

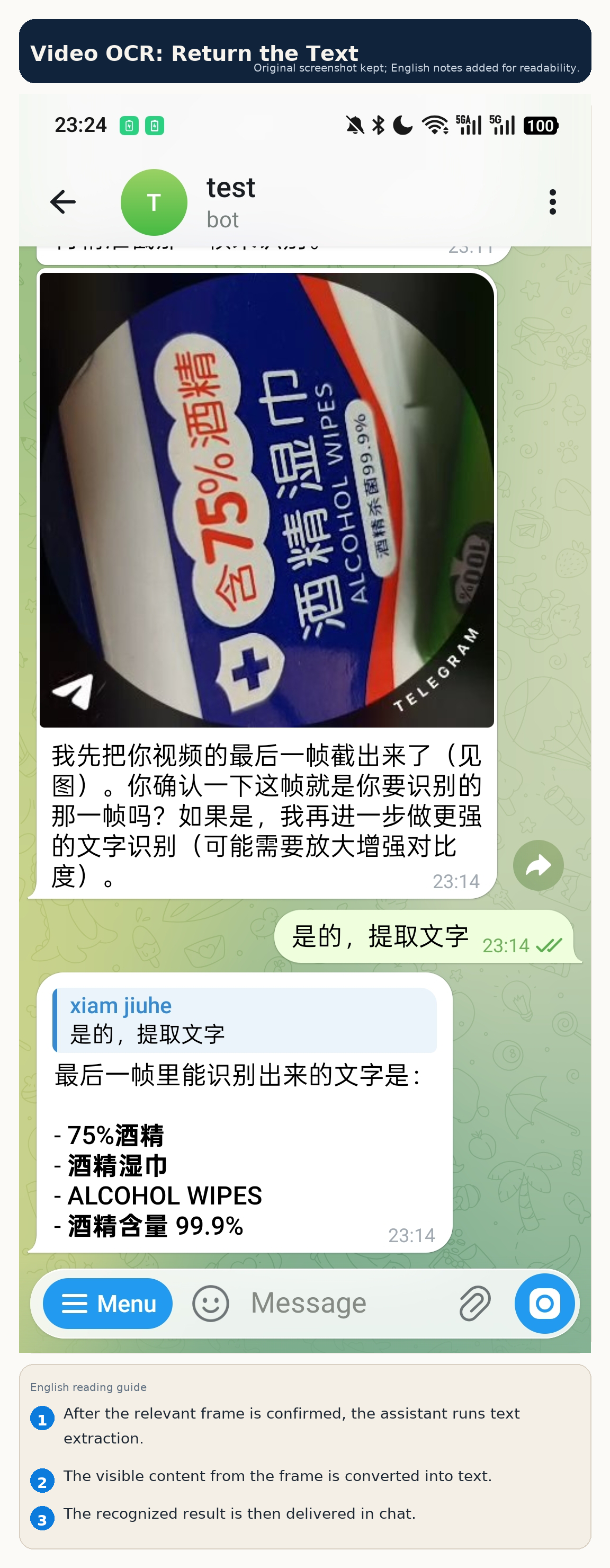

After confirming the target frame, it returns the recognized text:

The point here is not any single tool in isolation. The point is that multimodal input can enter Gateway and still flow through one unified Agent execution path.
Skills and System Actions
openclaw does not limit itself to "chat replies." It allows a single
execution to chain Skills, system tools, and writes to external
systems.
In the next example, the system first performs a weather query and then writes the current conversation into Apple Notes:

The resulting note looks like this:

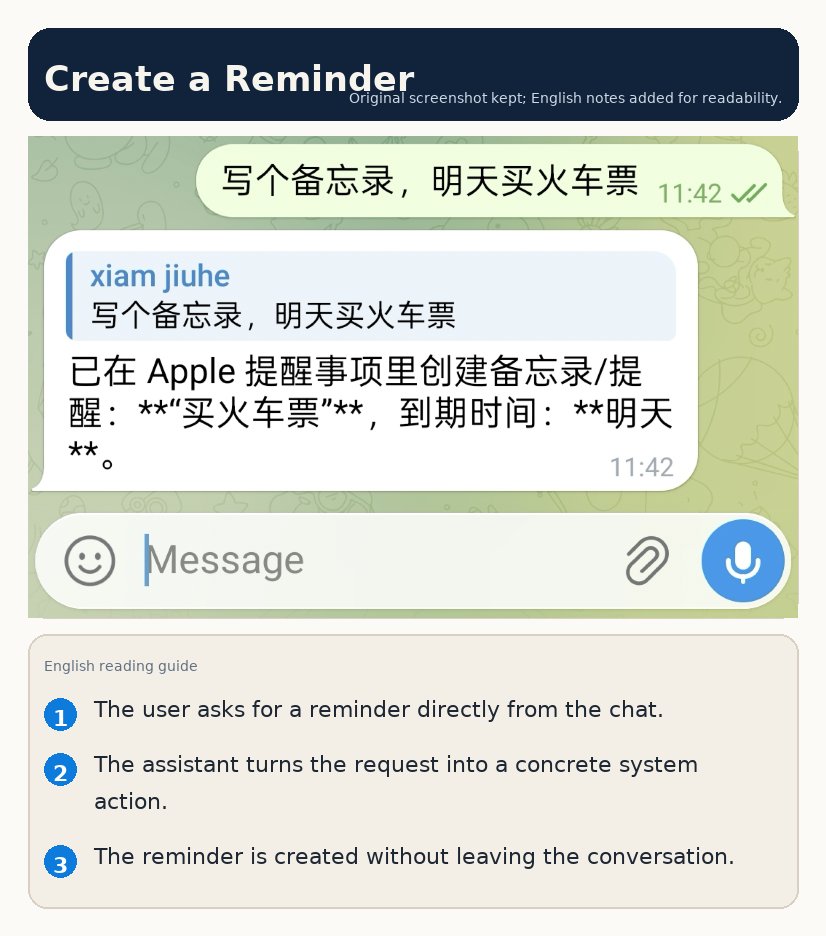

Likewise, reminders can be created directly from the conversation:

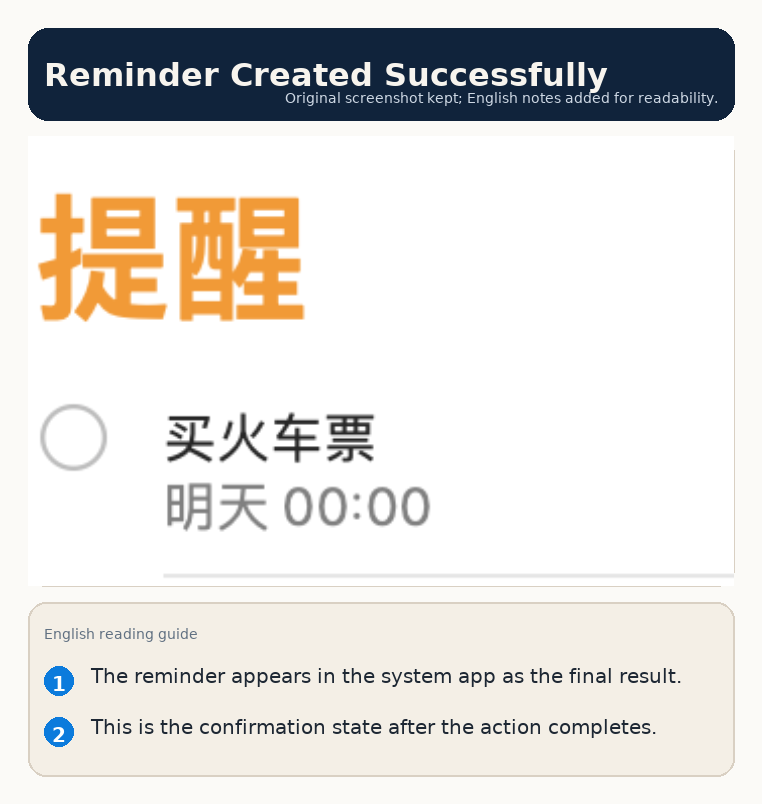

And the result looks like this:

These examples show that the "action" of the runtime does not have to stop at text output. The Agent can organize tools and system capabilities into an executable chain.
Scheduling and Management

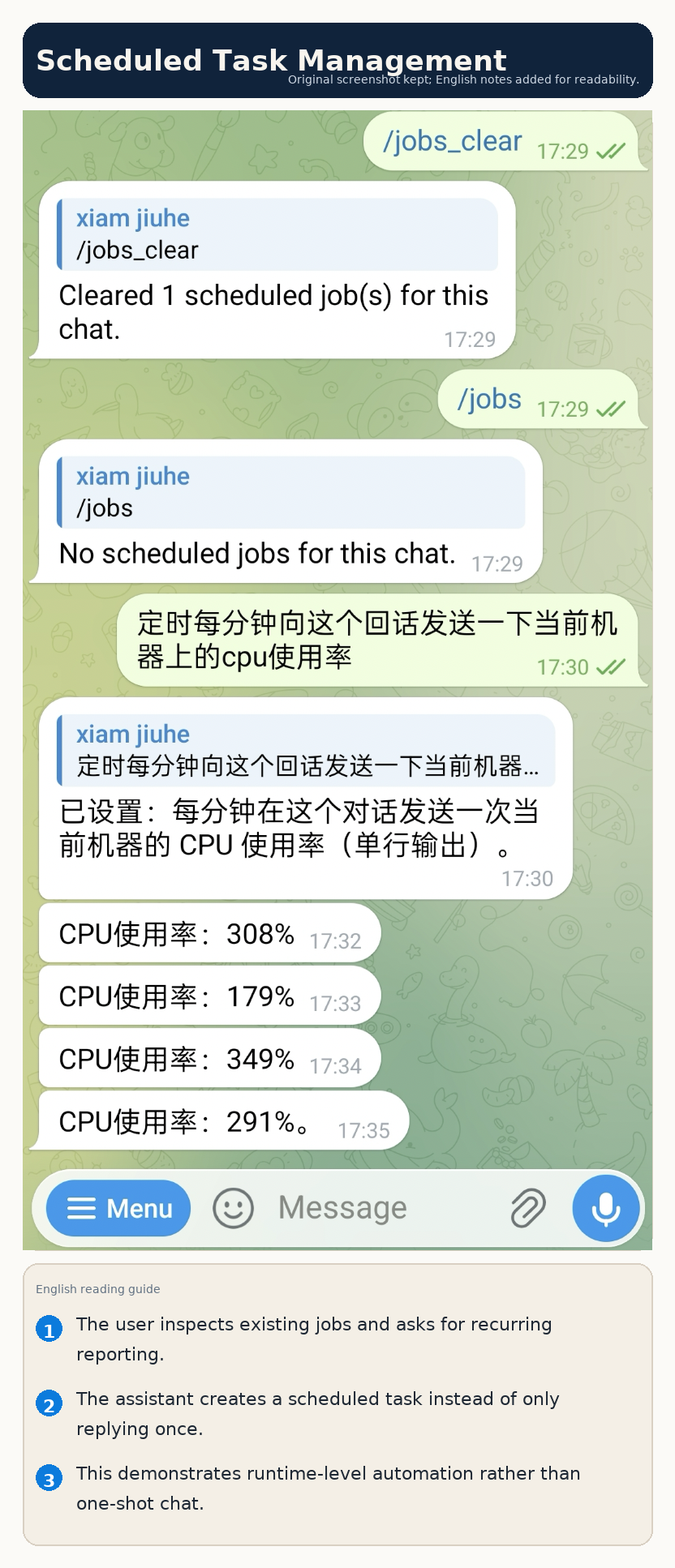

A long-running system also needs to handle work that should happen on a plan rather than immediately. In the example below, the user first checks and clears existing jobs, then asks the system to report local CPU usage every minute:

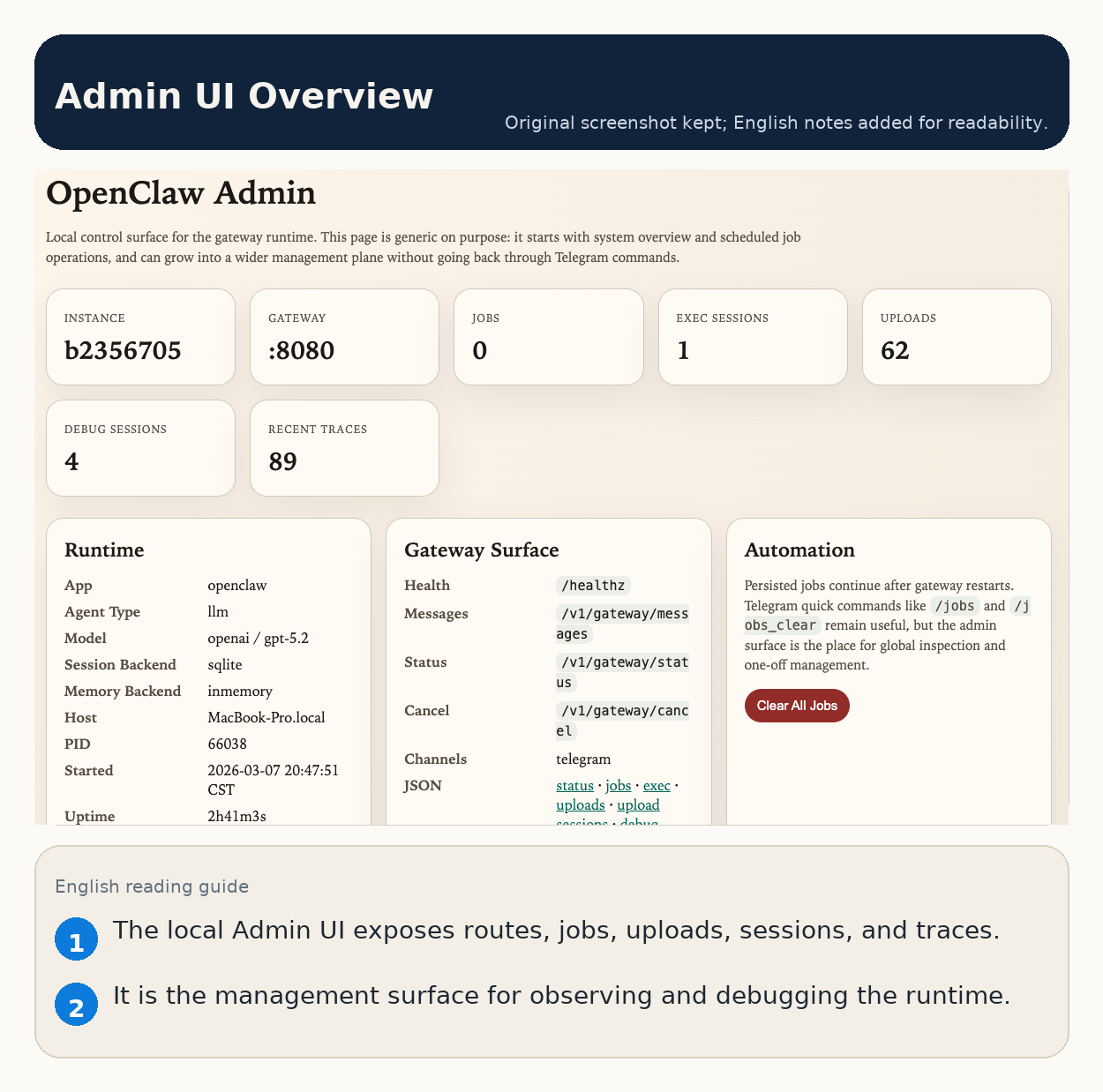

Besides in-chat commands, the current implementation also provides a local Admin UI for viewing instance information, Gateway routes, jobs, execution sessions, uploaded files, and debug traces:

This is the runtime support layer. It does not directly determine whether the model is clever, but it directly determines whether the system is maintainable, observable, and sustainable over time.
Core Concepts
From a runtime-responsibility perspective, openclaw can be understood
as four layers: the entry layer, the normalization layer, the execution
layer, and the runtime services layer. The entry layer receives
messages, the normalization layer unifies semantics, the execution
layer performs actual Agent reasoning and action execution, and the
runtime services layer provides the support capabilities required by a
long-running system.
The overall structure is shown below:
flowchart TB
U[User]
subgraph Channel Layer
CH[Chat Channel]
end
subgraph OpenClaw Runtime
GW[Gateway]
CRON[Cron Service]
ADMIN[Admin UI]
UPLOADS[Upload Store]
end
subgraph tRPC-Agent-Go
RUNNER[Runner]
AGENT[LLMAgent / Claude Code Agent]
SESSION[Session Service]
MEMORY[Memory Service]
MODEL[Model]
TOOLS[Tools / ToolSets / Skills]
end
U --> CH
CH --> GW
GW --> RUNNER
RUNNER --> AGENT
RUNNER --> SESSION
RUNNER --> MEMORY
AGENT --> MODEL
AGENT --> TOOLS
CRON --> RUNNER
GW --> UPLOADS
ADMIN --> GW
ADMIN --> CRON
ADMIN --> UPLOADS
Each layer corresponds to an independent responsibility:
- Channel receives messages from external platforms. In this article's running example, it is a chat entry point.
- Gateway turns external messages into a unified request format and handles session IDs, permissions, serialization, and multimodal normalization.
- Runner / Agent performs actual reasoning and connects history, memory, tools, and models.
- Session / Memory stores conversational context and long-term information so the system can remember what happened before.
- Runtime Services provides scheduling, file uploads, and management surfaces that a long-running runtime needs.
A message entering the system usually goes through five steps:
- The Channel receives the raw message, such as text, image, audio, video, or file.
- Gateway computes a stable
session_id, performs access checks, and normalizes the input into a standard request. - Runner retrieves history and memory based on
session_id, then calls the underlying Agent to execute. - The Agent calls Tools, Skills, ToolSets, or code executors as needed and produces the final reply.
- Gateway returns the result to the Channel, which then sends it back to the external platform.
In the tRPC-Agent-Go implementation, openclaw is not trying to
redefine what an Agent is. It is placing the Agent inside a system
boundary that can run continuously and evolve over time.
Gateway
Gateway sits between the message entry point and the execution core. Message formats, attachment representations, and conversation semantics from the entry side must all be normalized into a unified request before they reach Runner. Gateway is responsible for that step.
By default, Gateway exposes the following endpoints:
/healthz/v1/gateway/messages/v1/gateway/status/v1/gateway/cancel
Its main responsibilities are:
- Generate stable
session_idvalues - Enforce allowlist, mention, and other access rules
- Guarantee serialized execution within the same session
- Normalize text and multimodal inputs
- Call Runner and return results
The default session ID rules are:
- Direct message:
<channel>:dm:<from> - Thread or topic:
<channel>:thread:<thread>
These rules matter because they define which messages should count as the same ongoing conversation. If the session boundary is unstable, Session and Memory lose much of their value.
The message processing flow looks like this:
sequenceDiagram
participant User
participant Channel
participant Gateway
participant Runner
participant Agent
participant Tools
User->>Channel: Text / Image / Audio / Video / File
Channel->>Gateway: MessageRequest + ContentParts
Gateway->>Gateway: Compute session ID / check access / lock session
Gateway->>Runner: Run(user_id, session_id, message)
Runner->>Agent: Assemble history, memory, summary, and tools
Agent->>Tools: Call tools / skills / exec
Tools-->>Agent: Return results
Agent-->>Runner: Final reply
Runner-->>Gateway: reply
Gateway-->>Channel: reply / files
In multimodal scenarios, Gateway also handles normalization. Images,
audio, and video are transformed into a unified ContentPart
structure. URL-based input goes through protocol and domain checks, and
audio is converted into formats that are easier for the model to
accept. That allows Channel implementations to focus on "how to receive
messages" and "how to send messages" without reimplementing the entire
Agent runtime logic.
Channel
Channel is the most direct interface between the runtime and the
outside world. In the tRPC-Agent-Go openclaw implementation, it plays
the role of a platform adapter: it translates a platform-specific
message protocol into something Gateway understands, and then turns the
Gateway response back into that platform's sending format.
OpenClaw keeps the Channel interface deliberately light:
If a Channel also needs to send text or files proactively, it can
implement TextSender or MessageSender in addition. This design has
two immediate consequences:
- Adding a new entry point does not require changes to the Runner or Agent core path.
- Different platforms can keep their own network and protocol models as long as they are mapped into a unified Gateway request in the end.
For message-entry adapters like this, the key job is translating a "chat platform event" into a "standard runtime message." Once the message enters Gateway, the execution path becomes decoupled from the platform itself.
Session, Summary, and Memory
From first principles, these three things solve different problems:
Sessionanswers "how do we preserve the current conversation?"Summaryanswers "how do we compress context when the conversation becomes too long?"Memoryanswers "how do we retain stable facts across sessions?"
It helps to think of them separately:
Sessionis like the conversation record.Summaryis like a compressed version of that record.Memoryis like a user profile, a preference store, or other long-lived facts.
The default GitHub configuration starts both session and memory
with inmemory so the first run remains simple. If you want persistent
state, you can switch to a configuration like this:
The meaning of this split is simple:
- Conversation history goes into one dedicated SQLite file.
- Long-term memory goes into another dedicated SQLite file.
- Summary and automatic memory extraction stay under their own switches.
This separation matters because "what was just said in the current conversation" is not the same thing as "a stable user preference." If you mix them together, the system will tend to treat temporary facts as long-term memory or long-term facts as current-session context.
Agent Runtime Capabilities
After Gateway, openclaw directly reuses the existing execution system
from tRPC-Agent-Go. The current implementation supports these core
capabilities:
- Agent types:
llm,claude-code - Session backends:
inmemory,redis,sqlite,mysql,postgres,clickhouse - Memory backends:
inmemory,redis,sqlite,mysql,postgres,pgvector - Tool providers:
duckduckgo,webfetch_http - ToolSet providers:
mcp,file,openapi,google,wikipedia,arxivsearch,email - Skills: skill directories driven by
SKILL.md
On top of that, openclaw adds several tools that are especially
useful for long-running scenarios:
exec_commandwrite_stdinkill_sessionmessagecron
These tools do not change the Agent's reasoning model. What they do is bring real-world long-running actions into one runtime. Local command execution, cross-Channel message delivery, and scheduled tasks are all common requirements in this kind of system.
Scheduling and Management
A single-turn assistant can "respond." A long-running assistant system
must also "manage itself." That is why openclaw adds scheduling and
management capabilities outside the core conversation path.
On the scheduling side, the cron tool is backed by a long-lived
scheduler service that supports:
- Persisting jobs
- Triggering Agent runs on schedule
- Returning results through an outbound router to a target Channel and recipient
On the management side, the current Admin UI can already display:
- Instance and runtime information
- Gateway routes
- Jobs
- Execution sessions
- Uploads
- Debug traces
None of this comes from the model itself, but it determines whether the system can evolve from a chat demo into a real assistant product.
Usage
Runtime Assembly
openclaw/app.NewRuntime(...) is the assembly entry point for the
entire runtime. It parses arguments, fills in defaults, prepares state
and model dependencies, builds the Agent and Runner, and then attaches
Gateway, Channel, Cron, and Admin as surrounding components. This is
closer to a staged assembly pipeline than to a single business request
flow.
flowchart LR
subgraph L[Foundational Dependencies]
A1["Parameters and Config<br/>CLI / YAML / defaults"]
A2["State and Base Services<br/>state dir / debug recorder / model"]
A3["State Services<br/>session / memory / prompts"]
end
subgraph M[Execution Core]
B1["Capability Assembly<br/>OpenClaw tools / providers / tool sets"]
B2["Create Agent"]
B3["Create Runner"]
end
subgraph R[Runtime Shell]
C1["Peripheral Components<br/>uploads / persona / gateway client"]
C2["Entries and Services<br/>gateway / channels / cron / admin"]
end
A1 --> A2 --> A3
A3 --> B1 --> B2 --> B3
B3 --> C1 --> C2
The value of this assembly order is that foundational dependencies, the
execution core, and external entry services remain clearly separated.
Models still come from the model implementation, Session and Memory
still come from their backend providers, Tools, ToolSets, and Skills
still follow the native tRPC-Agent-Go model, and openclaw is the
layer that assembles them into one complete runtime.
Inspecting Registered Capabilities
Before extending the runtime, the first thing to confirm is not the
YAML syntax, but which types are actually present in the binary.
openclaw provides a direct troubleshooting entry point for exactly
that:
This command lists the types currently registered in the binary:
- Channel types
- Model types
- Session backends
- Memory backends
- Tool providers
- ToolSet providers
All of these types come from the global registry in
openclaw/registry. When the runtime parses channels,
tools.providers, tools.toolsets, session.backend,
memory.backend, and model.mode, it first looks up the factory by
type name. If the type cannot be found, it fails explicitly with errors
such as unsupported channel type, unsupported tool provider, or
unsupported toolset provider rather than silently ignoring the entry.
Custom Distribution Binaries
openclaw uses the typical Go compile-time registration pattern.
openclaw/registry maintains a type -> factory registry, each plugin
package calls registry.Register...(...) inside init(), and the
distribution entry point includes those packages through blank imports.
That means configuration selects types, while the binary determines
which types exist.
The standard entry point in the GitHub repository,
openclaw/cmd/openclaw/main.go, is a straightforward example:
This code illustrates a very important principle:
- Configuration decides which capability to choose.
- The build entry point decides which capabilities are present in the binary.
That is why, when you want to add a new Channel, ToolProvider,
ToolSet, Session backend, Memory backend, or Model provider, you should
usually start from the registry and the distribution entry point rather
than modifying the app.NewRuntime(...) core path directly.
ToolProvider and ToolSet Extensions
ToolProvider and ToolSet share the same registration model, but they serve different roles:
- ToolProvider is appropriate when you know at startup exactly which
tools should be attached; its factory returns
[]tool.Tool. - ToolSet is more appropriate when an external system generates a group
of related tools; its factory returns
tool.ToolSet.
From the runtime-assembly perspective, newAgent(...) first adds the
built-in openclaw tools, memory tools, and skill tools, then calls
toolsFromProviders(...) based on tools.providers in YAML, and
toolSetsFromProviders(...) based on tools.toolsets.
A minimal ToolProvider example can be taken directly from
openclaw/plugins/echotool in the repository:
The matching YAML looks like this:
If you are integrating something like MCP, OpenAPI, Google Search, or Wikipedia, where an external system exposes a set of tools, ToolSet is usually the better fit.
Session, Memory, and Model Backend Extensions
If your variation is not in the message-entry layer but in state or model access, then the extension point should live in backend factories rather than in the main runtime flow.
The mapping is direct:
model.modemaps toregistry.RegisterModel(...)session.backendmaps toregistry.RegisterSessionBackend(...)memory.backendmaps toregistry.RegisterMemoryBackend(...)
The value of this pattern is that the user-facing YAML remains stable.
For example, if you add a new postgres Session backend, the user still
only needs to write:
At runtime, sessionSvc is created by consulting the registry, loading
the factory, passing dependencies, and constructing the instance,
without exposing the internal wiring details in configuration.
Skills Extensions
In many business scenarios, the first thing that changes is not the runtime component model, but the operational guidance, scripts, and domain knowledge. In those cases, extending Skills is often a better choice than writing a Go plugin directly.
There are a few implementation details worth noticing about Skills in
openclaw:
- A Skill exists as a directory, with
SKILL.mdas the core file. - The runtime can load Skills from multiple roots and resolves naming conflicts by precedence.
skills.entries,allowBundled, andmetadata.openclaw.requires.*can be used for gating.
The most relevant troubleshooting command for Skills configuration is:
This command prints the config keys exported by the current
configuration. Skills use metadata.openclaw.requires.config to gate
activation against those keys. In practice, when a Skill does not take
effect, the more common reason is not "the Skill failed to load," but
"its required config, environment variables, or binaries are not
available yet."
Best Practices
In real adoption, the following practices are usually the most important:
- Debug from simple to complex: verify message intake and message delivery first, then the real model, then images, files, tools, and scheduled jobs.
- Define the session boundary before the capability boundary. A stable
session_idis a prerequisite for Session, Memory, summaries, and multi-turn tool execution to work correctly. - Keep Channel implementations light. They should handle platform protocol details, while business semantics should settle in Gateway and Runner.
- Prefer extensions at the Tool, Skill, ToolSet, and backend layers rather than accumulating business logic in Channel adapters.
- Treat scheduling, outbound delivery, uploads, and the management surface as part of the runtime itself rather than after-the-fact scripts. Only then does the system start to resemble a product-grade assistant.
Conclusion
In tRPC-Agent-Go, openclaw is a long-running runtime form built on
top of the existing Agent framework. It does not try to match the
official OpenClaw project structure exactly. Instead, it prioritizes
reusing existing capabilities such as Runner, Session, Memory,
Tool, Skill, ToolSet, and executors, then organizes them through
Gateway, Channel, Cron, upload storage, and Admin UI into something
closer to a real assistant product.
For teams that want to build long-running intelligent assistants in the Go ecosystem, the value of this approach is mainly twofold. First, the core execution path has a high degree of reuse, so new runtime scenarios do not require reinventing the Agent framework. Second, the extension boundaries stay clear, so the system can continue to absorb new message platforms, tools, skills, models, and storage backends.
When you look at the GitHub openclaw implementation together with the
default message-entry configuration, what it reveals is not just a
single bot. It is a runtime design that can keep running and keep
evolving.
Usage and Community
- GitHub repository: github.com/trpc-group/trpc-agent-go
openclawdirectory: github.com/trpc-group/trpc-agent-go/tree/main/openclaw- Reference configuration: github.com/trpc-group/trpc-agent-go/blob/main/openclaw/openclaw.yaml
- Extension guide: github.com/trpc-group/trpc-agent-go/blob/main/openclaw/EXTENDING.md
- Integration guide: github.com/trpc-group/trpc-agent-go/blob/main/openclaw/INTEGRATIONS.md
If you are interested in how this kind of long-running Agent runtime is implemented in the Go and tRPC-Go ecosystem, feel free to contribute, and feel free to star the GitHub repository as well: github.com/trpc-group/trpc-agent-go
